高速粉末型壓力機

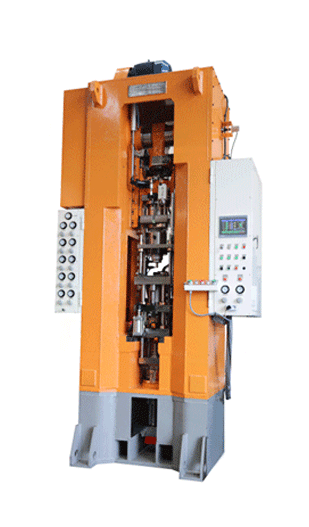

MSH-40 High-Speed Powder Type Press
1. Structure
Mechanical and Electrical servo hybrid Type
- UPPER RAM : Mechanical high pressing force
- LOWER RAM : Precision control by servo motor
- FEEDER : Precision control by servo motor
2. Characteristics
- MSH High-Speed Powder Type Press has a mechanical press force to perform a high pressure pressure. because precisely control the operation of the lower ram by the electric servo motor of the lower part, you can be precisely control Die-Set. You can get stable molding product by Skipping complex controls device and mechanical components of the lower part by Adjusting the correct filling, the amount of flowing and ejection by numerical control.
- By controlling speed and distance through the servo motor, the feeder can be operated according to the type of molding product and can form optimal molding conditions. (OPTION)
- Operation of the upper lam can be get at the top for high speed driving and high pressure by transferring power to the flywheel and gear by the motor installed.
| Max.Pressing force | 40TON | Molding Speed | 12~36 spm(20~60HZ) |
|---|---|---|---|
| Max Ejection Force | 20TON | Pressure indicator | 1Digital Pressure Gauge (with Overload Protection) |
| Max Filling Depth | 60mm | Main Motor | 7.5KW x 4p |
| Max Ejection Force Stroke | 60mm | Transmission | Inverter |
| Upper Ram Stroke | 130mm | Clutch & break | Spring-Return Type Air Clutch |
| DIE Control Stroke | 40mm | Lubrication Type | Gurris Central |
| Upper Punch Hole Down | 60mm(AR) | Air pressure used | 5~7 kg/cm2 |
| Upper Punch the Amount of Adjustment | 60mm | DIE SET | Upper 2 levels, Lower 2 levels |
| DIE Side Adjustment stroke | ±5mm | Hopper capacity | 40L |
| Max Diameter of Molding Product | Ø100mm | Size (WxDxH) | 1624×1730×3307 |
MSH-60 High-Speed Powder Type Press
1. Structure
Mechanical and Electrical servo hybrid Type
- UPPER RAM : Mechanical high pressing force
- LOWER RAM : Precision control by servo motor
- FEEDER : Precision control by servo motor
2. Characteristics
- MSH High-Speed Powder Type Press has a mechanical press force to perform a high pressure pressure. because precisely control the operation of the lower ram by the electric servo motor of the lower part, you can be precisely control Die-Set. You can get stable molding product by Skipping complex controls device and mechanical components of the lower part by Adjusting the correct filling, the amount of flowing and ejection by numerical control.
- By controlling speed and distance through the servo motor, the feeder can be operated according to the type of molding product and can form optimal molding conditions. (OPTION)
- Operation of the upper lam can be get at the top for high speed driving and high pressure by transferring power to the flywheel and gear by the motor installed.
| Max.Pressing force | 60TON | Molding Speed | 12~36 spm(20~60HZ) |
|---|---|---|---|
| Max Ejection Force | 20TON | Pressure indicator | 1Digital Pressure Gauge (with Overload Protection) |
| Max Filling Depth | 80mm | Main Motor | 11KW x 4p |
| Max Ejection Force Stroke | 80mm | Transmission | Inverter |
| Upper Ram Stroke | 150mm | Clutch & break | Spring-Return Type Air Clutch |
| DIE Control Stroke | 60mm | Lubrication Type | Gurris Central |
| Upper Punch Hole Down | 60mm(AR) | Air pressure used | 5~7 kg/cm2 |
| Upper Punch the Amount of Adjustment | 65mm | DIE SET | Upper 2 levels, Lower 2 levels |
| DIE Side Adjustment stroke | ±5mm | Hopper capacity | 40L |
| Max Diameter of Molding Product | Ø100mm | Size (WxDxH) | 1624×1730×3307 |
